Jiabaida BMS

JBD Smart BMS 6~21S 8S 16S 80A 100A 120A 150A 200A Lifepo4 & Li-ion Lithium Battery PCB with Balance NTC & Uart Bluetooth RS485 for EV

Regular price $76.30 USD
Regular price $83.01 USD Sale price $76.30 USD
Sale Sold out
Shipping calculated at checkout.

AP21S001 Smart bms

Quick Details
Model Number: AP21S001
Type: bms pcba
Place of Origin: Guangdong, China
Brand Name: Jiabaida
Supplier Type: manufacturer
Copper Thickness: 2 OZ
Brand name: JBD
Product name: BMS
Current: 150A/200A
Strings: 6-21S
Voltage: 24V/36V/48V/60V/72V
Port: Common port with balance function
Communication: UART/BT/RS485/CAN communication/LCD display
Usage: Lifepo4 /LI-ION
Size: 202mm*76mm*18mm
New features: heating function

Packaging & Delivery

Selling Units:  Single Item
Single Package Size: 23*13*16cm
Single Gross Weight: 1.500 kg
Package Type: Manufactuers will upgrade the packaging sometimes,please refer to the actual object received.
Package Content : 1* BMS *Balance wires* Bluetooth Module
Reminder: UART/RS485 communication box should be purchased seperately

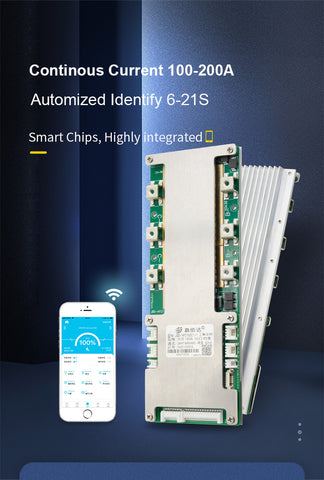

 JBD-AP21S001 is a software protection board solution designed specifically for 6-21 battery packs such as electric motorcycles, small three-wheels, small four-wheels, etc. It can be applied to lithium batteries with different chemical properties, such as lithium ion, lithium polymer, and iron phosphate. Lithium etc. The whole system uses Panasonic's front-end acquisition chip + MCU, and an external communication port.

● 6-21 series battery cell series protection.

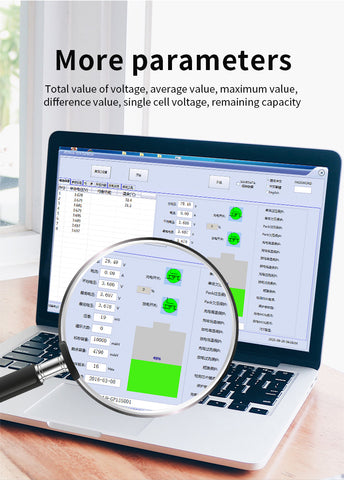

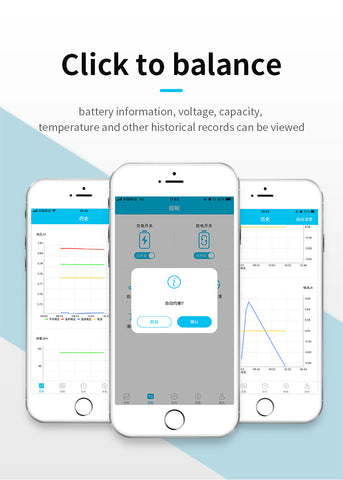

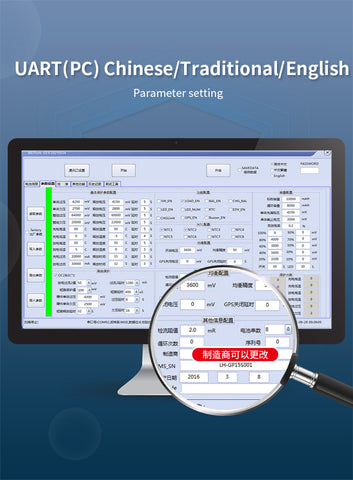

●The battery is intelligently balanced, and the balanced opening voltage and pressure difference can be flexibly adjusted by the host computer. Optional charge balance or static balance. Through time-sharing equalization, the maximum equalization current can reach 200mA.

● Integrate hardware protection functions such as overvoltage, undervoltage, overcurrent, and short circuit.

 ● Multiple working modes, when the protection board is in a static state, it can delay to enter dormancy to achieve the purpose of reducing power consumption.

 ●The default three-channel temperature detection probe, one channel detects the internal temperature of the protection board, and the two channels are placed in the place where the temperature needs to be detected according to customer needs.

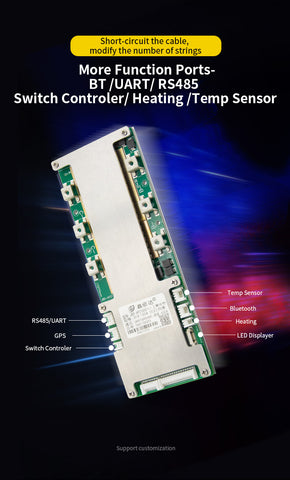

● Multiple external expansion interfaces can be used to add CAN\RS232 communication, charging low-temperature heating, secondary protection (FUSE), charger ID identification resistance, LED power display and other functions through the expansion interface.
