JBD Smart BMS 3S 4S 12V 60A 80A 100A 120A 150A LiFePO4 Battery PCB With Balance Uart Optional RS485
SP04S028 Smart bms
- Model Number: SP04S028
- Place of Origin: Guangdong, China
- Brand Name: JiaBaiDa
- Base Material: pcb
- Product name: 3s 4s 60A80A100A120A150A
- Strings: 3S4S
- voltage: 12V
- Same port with balance function: Yes
- With UART rs485 canbus communication: Yes
- Features: 80V withstand voltage
- Support battery series use: Yes
- Usage: Lithium Battery Packs
- Size: 185±1mm*102±1mm*12±1mm
Packaging & Delivery
- Selling Units: Single item
- Single package size: 23X13X16 cm
- Single gross weight: 0.500 kg
- Package Type: Manufactuers will upgrade the packaging sometimes,please refer to the actual object received.
- Package Content : 1* BMS *Balance wires* Bluetooth Module
- Note: UART/RS485 communication box should be purchased seperately
Operating voltage range/Operating current (MAX)150AOver-charge protection voltage3.65±0.05VOver-discharge protection voltage2.5±0.1VBalanced turn-on voltage3.4±0.05VCharging over current protection value/High temperature protection value of charging65±2℃High temperature protection value of discharge75±2℃Internal resistance<10mΩ

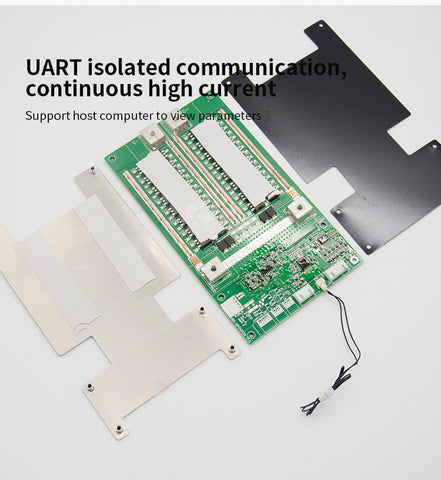

JBD-SP04S028 is designed by Dongguan jiabaida Electronic Technology Co., Ltd. It is an intelligent protection board scheme specially designed for 4 series battery packs of start-up battery and electric energy storage products. It is suitable for lithium batteries with different chemical properties, such as lithium ion, lithium polymer, lithium iron phosphate, etc. The protection board has strong load carrying capacity and the maximum continuous discharge current can reach 150A.● 4 cell series protection● Various protection functions for charging and discharging● Discharge over current, short circuit protection functional processes of hardware● Over voltage, under voltage, temperature and overload protection function processing of software● Accurate SOC calculation with automatic SOC learning function● Reserved RS485, CANBUS communication● UART communication function, can read all data of battery in real time and upgrade online● Hardware discharge over-current, short-circuit protection function processing● The reserved switch controls the output of protection board
